CZPB & CMPB Series

Non Metallic Magnetic Drive Sealless Chemical Process Extended Design Pump (Impeller Semi Open Or Close)

Description:

  • Single Stage, Horizontal Centrifugal Pump.
  • Permanent Magnetic Drive for wide range of temperature.
  • Maintenance Free.
  • Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell.
  • Slipless Power Transfer.
  • Materials: PFA, FEP, PVDF.
  • Casing Investment Casting with PFA Lined.
  • Impeller semi open or closed with metal insert.
  • Insulation (Can) carbon fiber with PTFE Lined.
  • Extended Design (Frame Mounted).
  • Hydraulically balanceed impeller for minimum bearing loads.
  • Product-Lubricated Journal Bearings; made of Sintered Silicon Carbide (SSiC) or Customized Materials.

Technical Data:

Operation Range
Flow Rate max. 300m³/h
Delivery Head 3 to 90 mtr.
Pressure Rating Class 150
Temperatures - 20°C to + 200°C
Kinematic Viscosities 0.5 to 350 mm²/S
Solid Handling up to 5% solids concentration, depending on the pumped fluid

ISO 2858 Standard

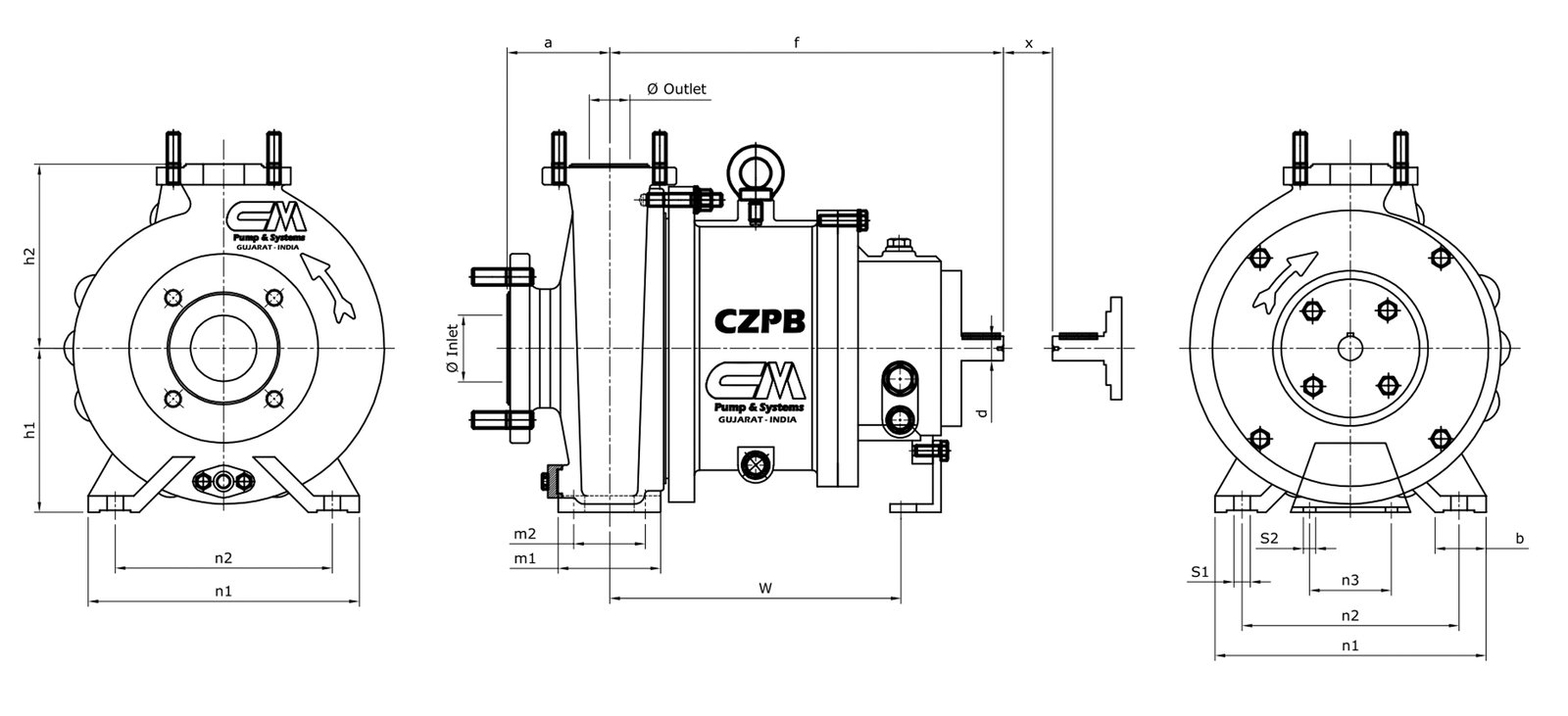

CZPB SERIES
Pump Model Nominal duty point Dimension in millimetres
n 1450 min n 2900 min Pump Support w Clearance holes for bolts Shaft end x
H m³/h Q m H m³/h Q m a f h1 h2 b m1 m2 n1 n2 n3 S1 S2 d l
CZPB 40 X 25 - 125 3 5 5 20 80 385 112 142 50 100 70 190 140 110 285 M12 M12 24 50 100
CZPB 40 X 25 - 160 3 10 5 30 80 385 132 160 50 100 70 240 190 110 285 M12 M12 24 50 100
CZPB 50 X 32 - 125 6.3 5 12.5 20 80 385 112 140 50 100 70 190 140 110 285 M12 M12 24 50 100
CZPB 50 X 32 - 160 6.3 8 12.5 32 80 385 132 160 50 100 70 240 190 110 285 M12 M12 24 50 100
CZPB 50 X 32 - 200 6.3 12.5 12.5 50 80 385 160 180 50 100 70 240 190 110 285 M12 M12 24 50 100
CZPB 50 X 32 - 250 6.3 20 12.5 80 100 500 180 225 65 125 95 320 250 110 370 M12 M12 32 80 100
CZPB 65 X 40 - 125 12.5 5 25 20 80 385 112 140 50 100 70 210 160 110 285 M12 M12 24 50 100
CZPB 65 X 40 - 160 12.5 8 25 32 80 385 132 160 50 100 70 240 190 110 285 M12 M12 24 50 100
CZPB 65 X 40 - 200 12.5 12.5 25 50 100 385 160 180 50 100 70 265 212 110 285 M12 M12 24 50 100
CZPB 65 X 40 - 250 12.5 20 25 80 100 500 180 225 65 125 95 320 250 110 370 M12 M12 32 80 100
CZPB 80 X 50 - 125 25 5 50 20 100 385 132 160 50 100 70 240 190 110 285 M12 M12 24 50 100
CZPB 80 X 50 - 160 25 8 50 32 100 385 160 180 50 100 70 265 212 110 285 M12 M12 24 50 100
CZPB 80 X 50 - 200 25 12.5 50 50 100 385 160 200 50 100 70 265 212 110 285 M12 M12 24 50 100
CZPB 80 X 50 - 250 25 20 50 80 125 500 180 225 65 125 95 320 250 110 370 M12 M12 32 80 100
